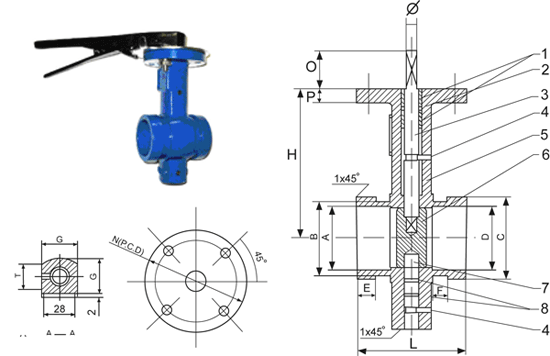

Grooved End Butterfly Valve
PN16/Class150

Valve Standards: Complies with EN593/BS5155/MSS SP-67.

Complies with EN593/BS5155/MSS SP-67

Working Pressure and Temperature

Working pressure PN20/Class150.
Temperature from -10íŠ to 120íŠ for EPDM coated disc.
Temperature from -10íŠ to 82íŠ for NBR coated disc.
Temperature from -10íŠ to 150íŠ for Viton coated disc.

Top Flange: Complies with ISO5211/1.

Flange Types

Grooved dimensions comply with Metric or ANSI Pipe standards

Operator:Handle or gear operator.

Butterfly Valve

Butterfly Valve Overview
BV1000W
BV1000L
BV1000S
BV2000W
BV2000S
BV2000L
BV3000W
BV3000L
BV4000
Hard Sealed Type
Flanged Type
Grooved End Butterfly Valve
Antiseptic Butterfly Valve

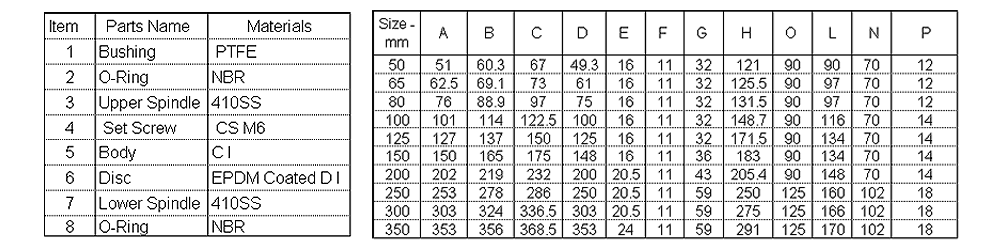

Material of parts
