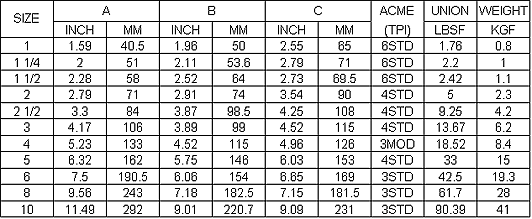

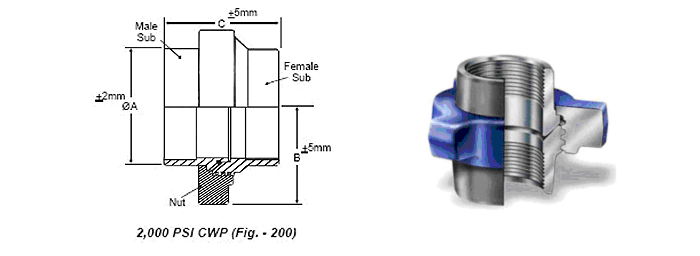

Fig 200.

These unions are best suited for medium pressure ranges involving air, water, oil & gas service for cold working pressure upto 2,000 PSI.  Upto 4" no O-ring is used on the male sub. Beyond 4" size, an O-Ring is used on the male sub for sealing. The Figure 200 is a compact and economical union, available with Threaded and ButtWeld ends.
