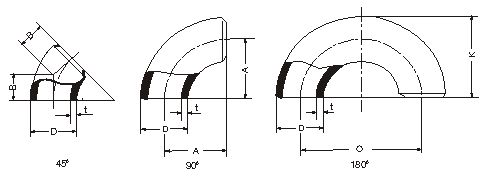

Carbon Steel Pipe Fitting--Elbow

Long Radius
ASME/ANSI B16.9

elbow
Nominal
Pipe
Size
inch		 Dimensions กก Wall thickness: t Approx. Weight
Outside Diameter
at Bevel: D		 Center to End: A/B
Center to center: 0
Back to Face: K
mm		 Sch. No. t 45กใ
kg		 90กใ
kg		 180กใ
kg
inch mm inch mm
1/2 0.840 21.3 A=38.1
B=15.7
O=76.2
K=47.8		 Std/40
XS/80		 0.109
0.147		 2.77
3.73		 0.04
0.05		 0.08
1.10		 0.16
0.20
3/4 1.05 26.7 A=38.1
B=19.1
O=76.2
K=50.8		 Std/40
XS/80		 0.113
0.154		 2.87
3.91		 0.04
0.05		 0.08
0.10		 0.16
0.20
1 1.315 33.4 A=38.1
B=22.4
O=76.2
K=55.6		 Std/40
XS/80
160		 0.133
0.179
0.250		 3.38
4.55
6.35		 0.08
0.10
0.13		 0.15
0.19
0.25		 0.30
0.38
0.50
11/4 1.660 42.2 A=47.8
B25.4
O=95.3
K=69.9		 Std/40
XS/80
160		 0.140
0.191
0.250		 3.56
4.85
6.35		 0.13
0.17
0.21		 0.25
0.33
0.42		 0.50
0.66
0.84
11/2 1.900 48.3 A=57.2
B=28.4
O=114.3
K=82.6		 Std/40
XS/80
160
XXS		 0.145
0.200
0.281
0.400		 3.65
5.08
7.14
10.15		 0.18
0.25
0.33
0.43		 0.36
0.49
0.65
0.86		 0.72
0.98
1.30
1.72
2 2.375 60.3 A=76.2
B=35.1
O=152.4
K=106.4		 Std/40
XS/80
160
XXS		 0.154
0.218
0.344
0.436		 3.91
5.54
8.74
11.07		 0.33
0.45
0.67
0.81		 0.65
0.90
1.33
1.61		 1.30
1.80
2.66
3.22
21/2 2.875 73.0 A=95.3
B=44.5
O=190.5
K=131.8		 Std/40
XS/80
160
XXS		 0.203
0.276
0.375
0.552		 5.16
7.01
9.53
14.02		 0.65
0.86
1.12
1.53		 1.29
1.71
2.23
3.05		 2.58
3.42
4.46
6.10
3 3.500 88.9 A=114.3
B=50.8
O=228.6
K=158.8		 Std/40
XS/80
160
XXS		 0.216
0.300
0.438
0.600		 5.49
7.62
11.13
15.24		 1.02
1.37
1.92
2.49		 2.03
2.74
3.83
4.97		 4.06
5.48
7.68
9.94
4 4.500 114.3 A=152.4
B=63.5
O=304.8
K=209.6		 Std/40
XS/80
120
160
XXS		 0.237
0.337
0.438
0.531
0.674		 6.02
8.56
11.13
13.49
17.12		 1.93
2.67
3.39
4.02
4.91		 3.85
5.34
6.78
8.02
9.82		 7.70
10.7
13.6
16.1
19.6
5 5.563 141.3 A=190.5
B=79.2
O=381.0
K=261.9		 Std/40
XS/80
120
160
XXS		 0.258
0.375
0.500
0.625
0.750		 6.55
9.53
12.70
15.88
19.05		 3.26
4.64
6.05
7.35
8.60		 6.51
9.27
12.1
14.7
17.2		 13.0
18.5
24.2
29.4
34.4
6 6.625 168.3 A=228.6
B=95.3
O=457.2
K=312.7		 Std/40
XS/80
120
160
XXS		 0.280
0.432
0.562
0.719
0.864		 7.11
10.97
14.27
18.26
21.95		 5.05
7.65
9.75
12.1
14.2		 10.1
15.3
19.3
24.2
28.4		 20.2
30.6
39.0
48.4
56.4
8 8.625 219.1 A=304.8
B=127.0
O=609.6
K=414.3		 20
30
Std/40
60
XS/80
100
120
140
160
XXS		 0.250
0.277
0.322
0.406
0.500
0.594
0.719
0.812
0.906
0.875		 6.35
7.04
8.18
10.31
12.70
15.09
18.26
20.62
23.01
22.23		 7.95
8.80
10.2
12.7
15.5
18.2
21.2
24.7
26.7
15.9		 15.9
17.6
20.4
25.4
30.9
36.3
43.3
48.3
53.3
51.7		 31.8
35.2
40.8
50.5
61.8
72.6
96.6
107
103
10 10.750 273.0 A=381.0
B=158.8
O=762.0
K=517.7		 20
30
Std/40
XS/60
80
100
120
140/XXS
160		 0.250
0.307
0.365
0.500
0.594
0.719
0.844
1.000
1.125		 6.35
7.80
9.27
12.70
15.09
18.26
21.44
25.40
28.58		 12.5
15.3
18.1
24.4
28.7
34.3
39.8
46.4
51.5		 25.0
60.5
36.1
48.8
57.3
68.6
79.6
92.8
103		 50.0
61.0
72.2
97.6
115
137
159
186
206
12 12.750 323.9 A=457.2
B=190.5
O=914.4
K=619.3		 20
30
Std
40
XS
60
80
100
120/XXS
140
160		 0.250
0.330
0.375
0.406
0.500
0.562
0.688
0.844
1.000
1.125
1.312		 6.35
8.38
9.53
10.31
12.70
14.27
17.48
21.44
25.40
28.58
33.32		 17.9
23.4
26.6
28.7
35.0
39.1
47.4
57.5
67.0
74.5
85.5		 35.7
46.8
53.1
57.8
70.0
78.2
84.7
115.0
134.0
149.0
171.0		 71.4
93.6
106.0
115.0
140.0
156.0
189.0
23.0
268.0
298.0
342.0
14 14.000 355.6 A=533.4
B=222.3
O=1033.8
K=711.2		 10
20
Std/30
40
XS
60
80
100
120
140
160		 0.250
0.312
0.375
0.438
0.500
0.594
0.750
0.938
1.094
1.250
1.406		 6.35
7.92
9.53
11.13
12.70
15.09
19.05
23.83
27.79
31.785
35.71		 22.9
28.5
34.1
39.6
45.0
53.0
66.0
81.5
94.0
106.0
118.0		 45.8
56.9
68.1
79.2
90.0
106.0
132.0
163.0
188.0
212.0
236.0		 91.6
114.0
136.0
158.0
180.0
212.0
264.0
326.0
376.0
424.0
472.0
16 16.000 406.4 A=609.6
B=254.0
O=1219.2
K=812.8		 10
20
Std/30
XS/40
60
80
100
120
140
160		 0.250
0.312
0.375
0.500
0.656
0.844
1.031
1.219
1.438
1.594		 6.35
7.92
9.53
12.70
16.66
21.44
26.19
30.96
36.53
40.49		 30.0
37.3
44.7
59.0
76.0
97.5
118.0
137.0
160.0
178.0		 60.0
74.5
89.3
118.0
153.0
195.0
235.0
274.0
319.0
35.0		 120.0
149.0
179.0
236.0
306.0
390.0
470.0
548.0
638.0
700.0
18 18.000 457.0 A=685.8
B=285.8
O=1371.6
K=914.4		 10
20
30
Std
XS
40
60
80
100
120
140
160		 0.250
0.312
0.438
0.375
0.500
0.562
0.720
0.938
1.156
1.375
1.562
1.781		 6.35
7.62
11.13
9.53
12.70
14.27
19.05
23.83
29.36
34.93
39.67
45.24		 38.1
47.3
66.0
56.5
75.0
84.0
111.0
137.0
167.0
196.0
220.0
246.0		 76.1
94.5
132.0
113.0
150.0
168.0
222.0
274.0
334.0
392.0
440.0
492.0		 152
189
264
226
300
336
444
548
668
}784
880
984
20 20.000 508.0 A=762.0
B=317.5
O=1524.0
K=1016.0		 10
Std/20
XS/30
40
60
80
100
120
140
160		 0.250
0.375
0.500
0.594
0.812
1.031
1.284
1.500
1.750
1.969		 6.35
9.53
12.70
15.09
20.62
26.19
32.54
38.10
44.45
50.01		 47.0
70.0
93.0
110.0
149.0
186.0
229.0
264.0
305.0
338.0		 94.0
140.0
186.0
219.0
297.0
372.0
547.0
528.0
609.0
676.0		 188
280
372
438
594
744
914
1056
1218
1352
22 22.000 559.0 A=838.2
B=342.9
O=1676.4
K=1117.6		 10
Std/20
XS/30
60
80
100
120
140
160		 0.250
0.375
0.500
0.875
1.125
1.375
1.625
1.875
2.125		 6.35
9.53
12.70
22.23
28.58
34.93
41.28
47.63
53.98		 57.0
85.0
113.0
194.0
246.0
297.0
347.0
395.0
443.0		 114.0
170.0
225.0
387.0
492.0
594.0
694.0
790.0
885.0		 228
340
450
774
980
1188
1388
1580
1770
24 24.000 610.0 A=914.4
B=381.0
O=1828.8
K=1219.2		 10
Std/20
XS
30
40
60
80
100
120
140
160		 0.250
0.375
0.500
0.561
0.688
0.969
1.219
1.531
1.812
2.062
2.344		 6.35
9.53
12.7
14.27
17.48
24.61
30.96
38.89
46.02
52.37
59.54		 68
101
135
151
183
255
317
393
460
515
580		 136
202
268
301
366
510
634
486
919
1033
1160		 272
404
538
602
732
1020
1268
1572
1838
2060
2320
26 26.000 660.0 A=990.6
B=406.4		 10
Std
XS/20		 0.312
0.375
0.500		 7.92
9.53
12.70		 99
119
158		 198
238
316
28 28.00 711.0 A=1066.8
B=438.2
O=
K=		 10
Std
XS/20
30		 0.312
0.375
0.500
0.625		 7.92
9.53
12.70
15.88		 115
138
184
228		 230
276
367
456
30 30.000 762.0 A=1143.0
B=469.9		 10
Std
XS/20
30		 0.312
0.375
0.500
0.625		 7.92
9.53
12.70
15.88		 132
159
211
262		 264
618
421
524
32 32.000 813.0 A=1219.2
B=501.7		 10
Std
XS/20
30
40		 0.312
0.375
0.500
0.625
0.688		 7.92
9.53
12.70
15.88
17.48		 151
181
240
299
328		 301
362
480
597
656
34 34.000 864.0 A=11295.4
B=533.4		 10
Std
XS/20
30
40		 0.312
0.375
0.500
0.625
0.688		 7.92
9.53
12.70
15.88
17.48		 170
204
271
338
371		 340
408
542
675
742
36 36.000 914.0 A=1371.6
B=56.2		 10
Std
XS/20
30
40		 0.312
0.375
0.500
0.625
0.750		 7.92
9.53
12.70
15.88
19.08		 191
229
304
379
453		 381
458
608
758
906
