Weld End

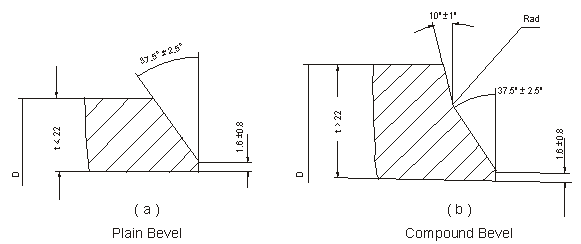

Welding Bevel acc.to ASME / ANSI B16.9 and ASME / ANSI B16.28

welded end

Nominal wall Thickness : t
 End Preparation
t<5mm (for austenitic alloy steel
t<4mm)		 Cut square or slightly chamfer
at manufacturer ' s option
5<t<22mm
(4<t<22mm)		 Plain Bevel as in sketch ( a ) above
t>22mm Compound Bevel as in sketch ( b ) above
